Silica CordsSilica mats | Silica fabric | Silica tape | Silica meshes | Silica cords | Chopped silica fiber | Microspheres
Also we produce hollow silica cords and cords with cotton inside.
Work temperature -200 C/ +1100 C.
Special offer for e-smokers
Technical characteristics of silica cords
Silica cords with threads Diameter, mm
SCN-1.5
1.5±0,1
SCN-3
3±0,3
SCN-4
4±0,4
SCN-5
5±0,5
SCN-6
6±0,6
SCN(Y)-8 *
8±1,0
SCN(Y)-10 *
10±1,0
SCN(Y)-12 *
12±1,0
SCN(Y)-14 *
14±1,0
SCN(Y)-16 *
16±1,0
SCN(Y)-18 *
18±1,8
SCN(Y)-20 *
20±2,0
SCN(Y)-22 *
22±2,0
SCN(Y)-30 *
30±2,0
* - single shield, may be produced double shield
Silica cords with fiber Diameter, mm
SCN(F)-8 *
8±1,0
SCN(F)-10 *
10±1,0
SCN(F)-12 *
12±1,0
SCN(F)-14 *
14±1,0
SCN(F)-15 *
15±1,0
SCN(F)-16 *
16±1,0
SCN(F)-18 *
18±1,8
SCN(F)-20 *
20±2,0
SCN(F)-22 *
22±2,0
SCN(F)-25 *
25±2,0
SCN(F)-30 *
30±2,0
SCN(F)-35 *
35±3,0
SCN(F)-40 *
40±3,0
SCN(F)-50
50±3,0
* - single shield, may be produced double shield
Hollow silica cords Diameter, mm
SC-1
1±0,1
SC-2 *
2±0,2
SC-3 *
3±0,3
SC-4 *
4±0,4
SC-5 *
5±0,5
SC-6 *
6±0,6
SC-8 *
8±1,0
SC-10 *
10±1,0
SC-12 *
12±1,0
SC-14 *
14±1,0
SC-16 *
16±1,0
SC-18 *
18±1,0
SC-20 *
20±1,0
SC-25 *
25±1,0
SC-30 *
30±1,0
SC-35 *
35±1,0
SC-40 *
40±1,0
SC-45 *
45±1,0
SC-50 *
50±1,0
* - may be produced with yarn thermoprocessed

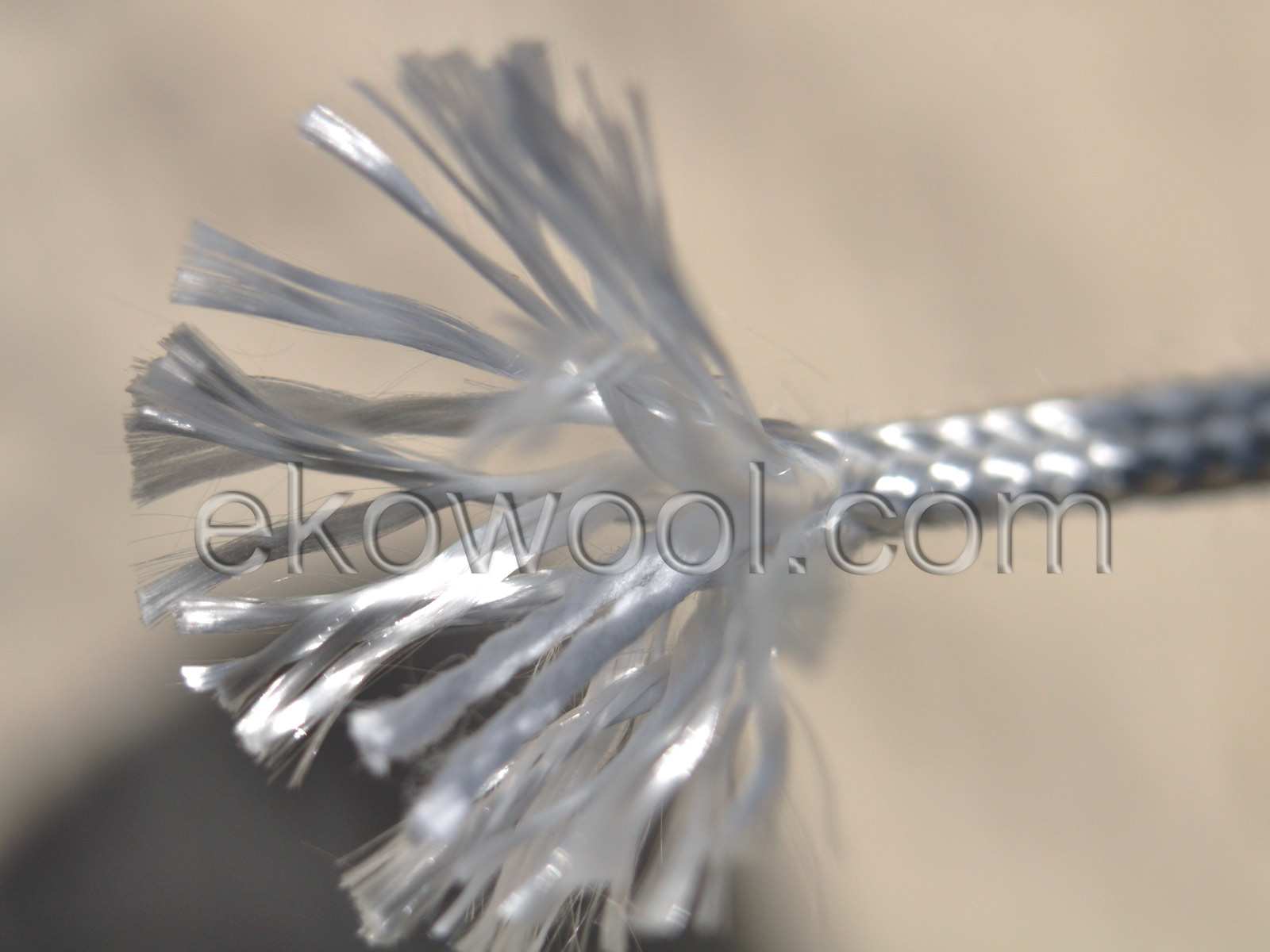

Cords are consisting of one or two shield, which were made from silica yarn and stuff. Stuff is consisting of silica threads or fiber. They are used for compression and thermal protection of different equipment, which is working at high temperature environment. Cords are not toxic and not inflammable. Section of the cord is circular.
